EDUCATION

During what phase of a project would I need 3D scanning?

Existing Conditions Scan of structures

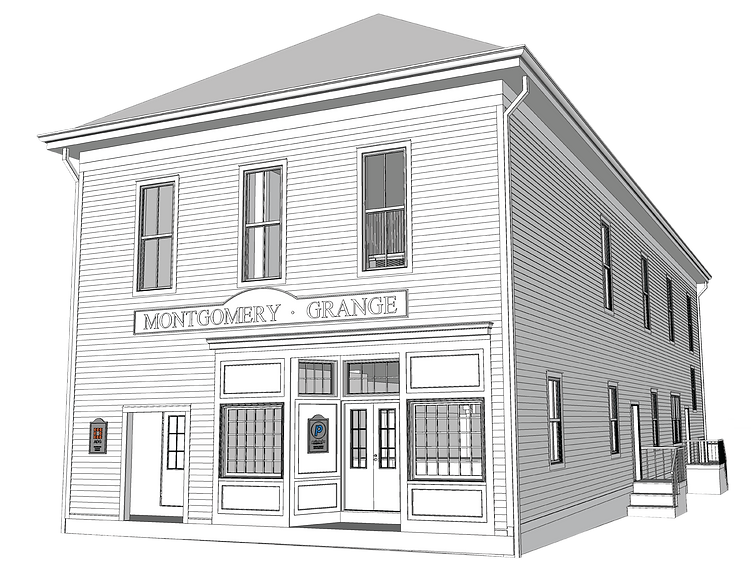

Instead of sending your own drafts-people out to field measure a project, allow Printeks 3D Scanning & Printing to perform an HDS laser scan of the interior and exterior of your building. Printeks will then deliver to you a 3D point cloud with HD color images that can be viewed, dimensioned, and converted into a Revit or cad file. Not familiar with working with point clouds or looking to get a head start on your project? Printeks can also convert the 3D point cloud into a Revit model, which would include existing walls, bathroom fixtures, door and window locations, visible structural elements, stairwells, signage, and a general outline of large equipment.



Point-in-Time As-Built Conditions Scan

After your structure is constructed and all MEP systems are installed, Printeks 3D Scanning & Printing will perform an HDS laser scan of the interior of the building, fully capturing and documenting all utilities and MEP systems before they are covered up by sheet-rock. We will then provide a color 3D point cloud with HD color images that can be viewed, measured, and overlaid into a Revit or cad file.



Think of the value-add this will bring to your clients and their facility personnel having a 3D model of everything "behind-the-walls"!



Under-Slab Utility As-Built Scan

After the trenches are dug and utilities installed, prior to back-filling, Printeks 3D Scanning & Printing will perform an HDS laser scan of the interior of the building, fully capturing and documenting all underground utilities and MEP systems, tying them to adjacent structures, before they are covered by concrete. We will then provide a color 3D point cloud with HD color images that can be viewed, measured, and overlaid into a Revit or cad file.



Final As-Built Conditions Scan

After your structure is constructed, Printeks 3D Scanning & Printing will perform HDS laser scan of the interior and exterior of the building, fully capturing and documenting all visible existing conditions. We will then provide a color 3D point cloud with HD color images that can be viewed, measured, and overlaid into a Revit or cad file
